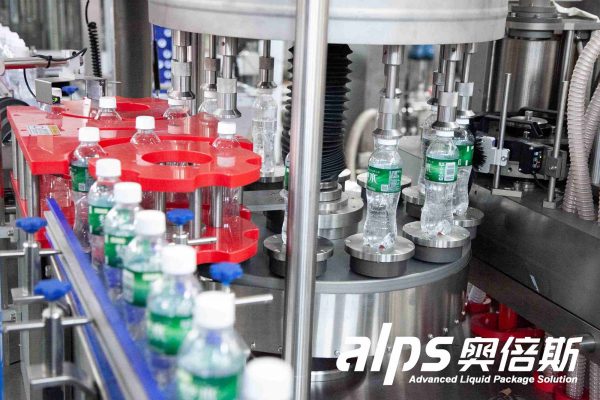

Rotary Type Sticker Labeling Machine

It is suitable for single sided,double sided, full circle pase, positioning and labeling.
Using the servo motor to dial the star wheel to prevent the bottle from scratching, and the bottle into the machine, the products enters and exits smoothly and stably at high speed.
Touch operation infinitely variable speed system, only need to set the capacity on the man machine interface during adjustment, the speed of conveying, splitting screw and inlet and outlet star wheel will be changed at the same time, no need to adjust separately.
Use the synchronous belt rotating type to make the bottle body rotate, ensuring the accuracy and stability of labeling.
Using 750W high power, large torque, ultra small intertia servo motor to send the standard, the delivery speed can reach 60m/min.
Spreader: It adopts three column structure, 8-dimensional space adjustment, three stage tension spring clutch control, adopts independent servo motor to recover the bottom paper, and the force is even, to prevent the bottom paper from being pulled off, the delivery plate and the bottom paper receiving plate 1:1 design, bottom paper tray can accommodate three rolls of label bottom paper at a time.
Automatic central centralized lubrication system, regular automatic lubrication of the main moving shaft. Convenient maintenance and long service life.
